Ever look at a mechanical watch, an automated robotic arm, or an aerospace optical module and wonder how dozens of loose gears, pins, and brackets fit together into a seamless, high-performance machine?
Machining high-accuracy components is only half the journey. The real magic happens during Precision Metal Assembly—the industrial equivalent of building complex Lego sets with microscopic tolerances, where every screw, bushing, and spring must align within micrometers to function flawlessly.
What Is Precision Metal Assembly?
Assembly is the art and engineering of joining distinct parts—often made from different materials and manufacturing methods—into a unified, functioning mechanism:
- Press-Fitting & Interference Fits: Inserting precision-turned shafts and hardened dowel pins into tight bores under controlled hydraulic pressure without damaging the base material.
- Threaded Fastening & Torque Control: Securing housings with exact torque specifications to prevent vibration loosening while avoiding thread stripping.
- Adhesive Bonding & Sealing: Applying specialized industrial resins and O-rings to deliver fluid-tight seals or vibration-damped joints.
- Riveting & Mechanical Staking: Fastening sheet metal brackets permanently and rapidly for lightweight rigidity.
Learn how we transform loose parts into production-ready sub-systems on our dedicated Precision Metal Assembly line.

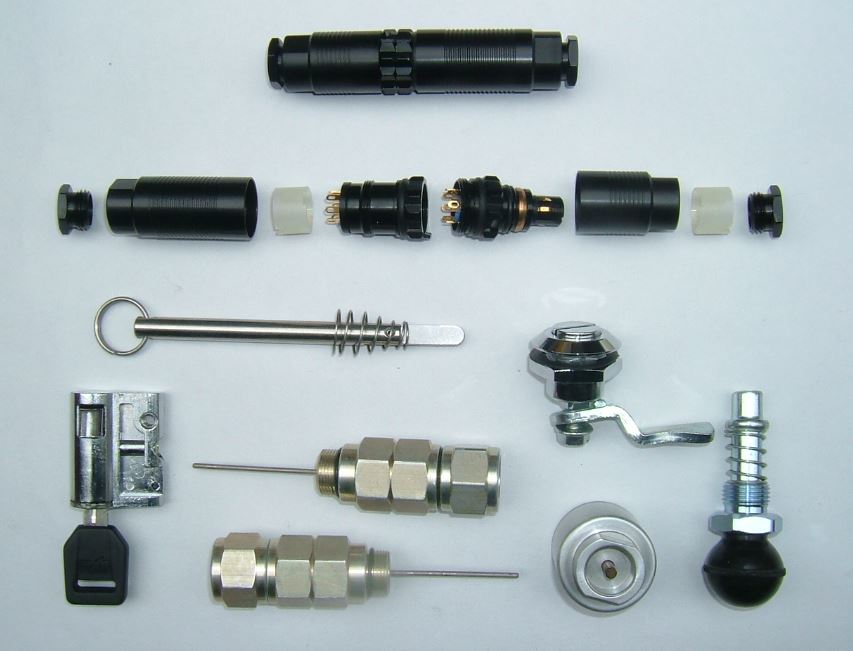

The Building Blocks of a Complex Assembly
A completed assembly rarely relies on a single process. Modern hardware combines multiple manufacturing disciplines under one roof:
- Rotational Shafts & Bushings: Smooth, concentric shafts and threaded fittings crafted via our CNC Turning Parts & Services.

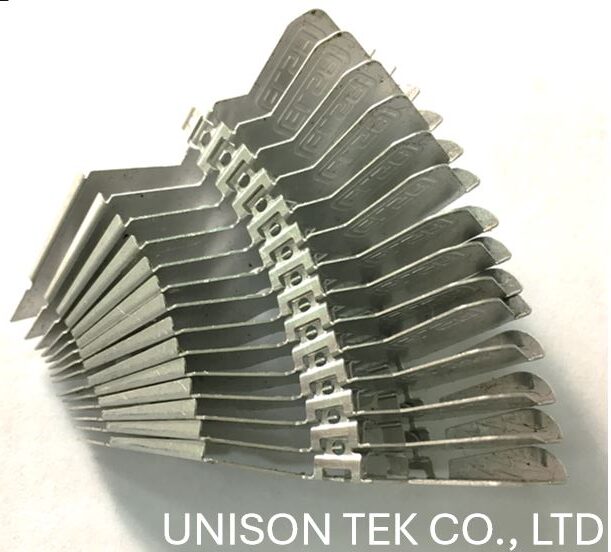

- Thin-Wall Brackets & Shields: High-speed formed clips, springs, and covers produced on our Metal Stamping Parts line.
- High-Frequency Connectors: Precision-fit contact pins and RF shells from our Custom Connector Components division.
- Polymer Housings & Insulators: Lightweight snap-fit covers and non-conductive bodies made through Plastic Injection Parts molding.
Choosing the Right Materials for Mating Parts
When different metals and plastics interact, friction, thermal expansion, and galvanic corrosion must be managed:
- Mating Dissimilar Alloys: Combining brass bushings with stainless steel shafts ensures smooth rotation without material galling.
- Thermal Matching: Balancing aluminum frames with steel inserts ensures assemblies maintain structural integrity across fluctuating operating temperatures.
Review all raw stock properties, thermal coefficients, and plating options in our Engineering Material Guide.
Quality Control: How We Guarantee Perfect Fits
In sub-system assembly, minor dimensional variations across individual parts can stack up—a problem known as “tolerance stack-up”—causing mechanisms to seize or rattle.
- Advanced Metrology: We verify individual components and assembled fits using 3D Coordinate Measuring Machines (CMM), optical comparators, and torque gauges featured on our Quality Inspection Equipment page.
- Standardized Testing Protocols: Every mechanical assembly undergoes functional movement testing, pull-force checks, and ISO compliance verified through our QC Quality Assurance System.
- Modern Integration Cells: Tour our automated assembly benches and multi-axis CNC machines on the Factory & Facility Page.
Build Your Turnkey Solutions With Unison Tek
Managing five different suppliers for machining, stamping, molding, plating, and final assembly creates unnecessary delays and risk. Unison Tek provides a complete, one-stop manufacturing ecosystem that delivers finished sub-assemblies straight to your production line. Discover how global hardware leaders rely on our integration capabilities on our Customer Testimonials page.
- Browse our broad portfolio of custom hardware on the Unison Tek Products Page.
- Ready to streamline your mechanical sub-assemblies? Send your 2D/3D assembly drawings directly to our engineering team via our Contact Us Page for an immediate DFM evaluation and quote.
