Imagine you need to make a metal part. It requires a perfectly round cylindrical body, but it also needs a flat edge on the side, a few drilled holes around the perimeter, and a slot cut into the top.

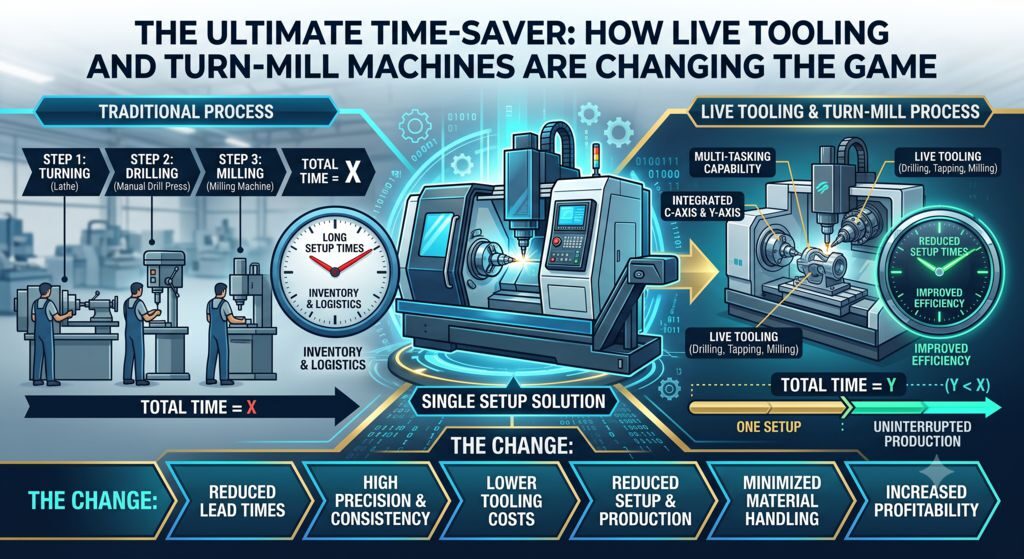

In an old-school machine shop, this part would have to take a journey. First, it would sit in a CNC lathe to be spun and shaped into a cylinder. Then, a machinist would manually unclamp it, walk it across the shop floor, and load it into a CNC milling machine to drill the holes and cut the slots.
This process is slow, opens the door for human error, and eats up valuable time.
Enter the world of Live Tooling and Turn-Mill machines. These engineering marvels combine two completely different manufacturing worlds into a single, powerhouse machine. Let’s explore how they work and why they are the ultimate secret weapon for modern machine shops.
What is a Turn-Mill Machine?
To understand a Turn-Mill machine, we first need to look at the two traditional types of machining:
Turning (The Lathe): The material spins at high speeds while a stationary knife cuts away ribbons of metal to create round objects (like axles, bowls, or screws).
Milling (The Mill): The material stays perfectly still while a rapidly spinning tool (like a drill or endmill) moves around to carve out pockets, slots, and flat surfaces.
For decades, these were two separate machines. A Turn-Mill machine is a hybrid. It looks like a CNC lathe, but it has the brains and capabilities of a milling machine built right into it.
The Secret Ingredient: Live Tooling (Driven Tool Turret)
How does a lathe suddenly start acting like a milling machine? The magic lies in the Live Tool Turret.
On a standard lathe, the turret holds a collection of different knives. The turret rotates to select the right knife, but the tool itself just sits there silently while the metal part spins against it. These are called "static tools."
A Live Tool Turret, however, has built-in motors and gears inside the turret itself. When you load a tool like a drill bit or a milling cutter into a live tool slot, the machine can send power directly to that tool. Suddenly, the tool can spin at thousands of RPMs while the main material stays completely still or rotates precisely to a specific angle.
Instead of just shaving down a cylinder, your lathe can now drill off-center holes, engrave serial numbers, cut gears, and mill complex shapes.
The 3 Biggest Superpowers of Turn-Mill Machining
1. Done-in-One (The Power of One Setup)
Every time a human operator has to take a part out of one machine and put it into another, something can go wrong. If the part is re-clamped even a fraction of a millimeter off-center, the whole part can be ruined.
Turn-Mill machines utilize a philosophy called "Done-in-One." You load a raw bar of metal into the machine, and it comes out as a completely finished, complex part. No moving between machines, no alignment errors, and no wasted time.
2. Massive Space and Labor Savings
Floor space in a factory is expensive. Instead of buying, powering, and maintaining a separate lathe and a separate milling machine, a shop can buy one Turn-Mill machine. Additionally, because the machine handles the entire process automatically, operators don't have to spend their day babysitting parts and moving them from station to station.
3. Drastically Faster Turnaround Times
In manufacturing, time is money. Eliminating the "transit time" between different areas of a shop means parts get finished days or even weeks faster. This allows shops to take on more clients and deliver orders in record time.
Who is This For?
While Turn-Mill technology sounds like a no-brainer, it’s particularly famous in industries that require extreme precision and complex geometries.
You will find these machines heavily utilized in medical manufacturing (making tiny, complex bone screws and implants), aerospace (making lightweight engine components), and the automotive industry. Anywhere you need a part that is mostly round but has intricate details, Turn-Mill is king.
The Takeaway
The industrial world is constantly pushing for things to be faster, more precise, and more efficient. By marrying the spinning power of the lathe with the intricate carving capability of the mill, Turn-Mill machines and live tooling have rewritten the rules of the machine shop.
It proves that sometimes, instead of working harder across different machines, the best solution is to let one machine do it all.
Have you ever seen a Turn-Mill machine in action? It’s mesmerizing to watch a part go from a raw metal bar to a highly detailed finished component in minutes. Let us know your thoughts in the comments below!
